Technical Parameter
|
Ratio of raw materials |
1:1 fixed ratio |
|
Max working pressure |
25Mpa |
|
Output of raw material |
4～10kg/min |
|
Whole Power |
18KW |
|
Max heating hose length |
90M(Optional) |
|
Viscosity range of raw materials |
200～1000CPS(under working temperature) |
|
Heating temperature range |
0℃~80℃ |
| The way of driving the machine | Electric +(with) pneumatic |
|
Electrical requirements |
Single-phase 220V 50Hz, three-phase 380V 50Hz/60Hz (customizable) |
|
Pneumatic source |
0.6~0.8MPa 0.6m³/min |
|
Weight |
132Kg |
|
Heating device power for material |
4500W*2 (customizable) |
|
Heating power for pipe heating |
3500W |
|
Dimension((L×W×H) |
1050*800*1000mm |
Standard Configuration
|
Mainframe |
1set |
|
Spray gun |
1set |
|
Transfer pump |
2sets |
|
Insulated pipe with heating |
15m(standard) |
|
Connecting pipe for spray gun |
1.5m*2 |
|
Random accessories |
1set |
|
Gross weight |
247Kg |
|
Package size (L×W×H) |
1100*850*1450mm |

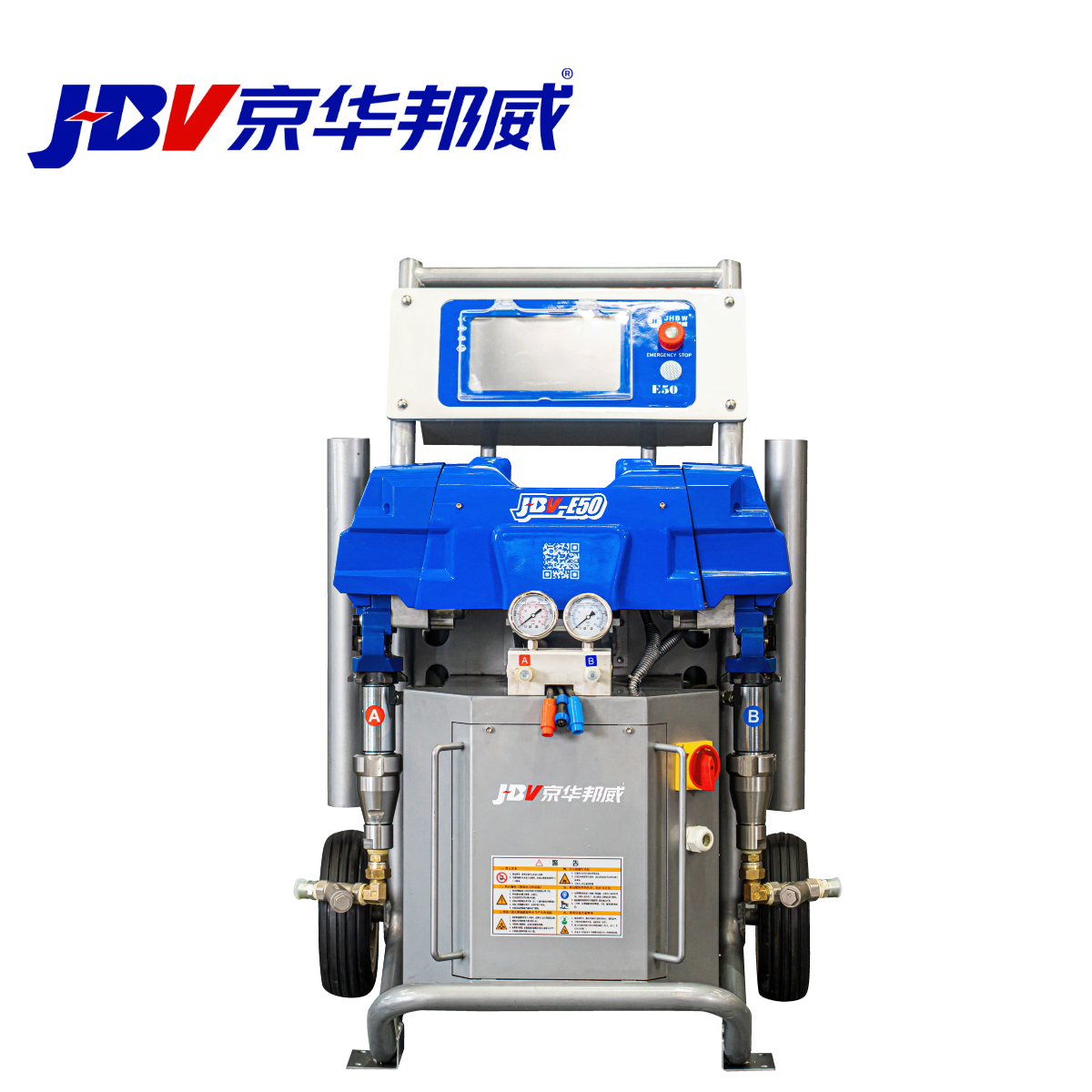

This is the standard for professional SPF application. It has two separate material tanks, pumps, and hoses for the "A-side" (isocyanate) and "B-side" (resin/polyol blend). The machine meters, heats, and delivers them separately to the gun, where they are mixed.
Softer, less dense, and vapor-permeable. Used primarily for interior wall insulation and sound dampening.
