• A wide range of specialized spray guns: Application efficiency is exponentially improved • Multiple self-cleaning features eliminatematerial buildup: No gun clogging • Modular design: Fewer wearing parts、Easy disassembly and maintenanc • Special alloy material: Excellent wear and corrosion resistance and airtightness • Ergonomic design: Excellent comfort and reduced fatigue

GET A QUOTE

Technical Parameter

Technical Parameter

Ratio of raw materials	1:1 fixed ratio
Max working pressure	15Mpa
Output of raw material	4～9kg/min
Whole Power	9KW
Max heating hose length	60M(Optional)
Viscosity range of raw materials	200～1000CPS(under working temperature)
Heating temperature range	0℃~80℃
The way of driving the machine	Full pneumatic
Electrical requirements	Single-phase 220V 50Hz, three-phase 380V 50Hz/60Hz (customizable)
Pneumatic source	0.7~0.9MPa 1m³/min
Weight	100Kg
Heating device power for material	3000W×2
Heating power for pipe heating	2500W
Dimension((L×W×H)	6807201100mm

Standard Configuration

Mainframe	1set
Spray gun	1set
Transfer pump	2sets
Insulated pipe with heating	15m(standard)
Connecting pipe for spray gun	1.5m*2
Random accessories	1set

Standard Configuration

Gross weight	195Kg
Package size (L×W×H)	9007501420mm

Panoramic View of Spraying Equipment

Introduction to Spray Machines

Multifunctional spray machine
Effortless Handling of Complex Processes

Rapid foaming

Building insulation

Factory building insulation

Tank insulation

Cushion packaging

Subgrade restoration

Opt for specialized spray guns to achieve professional-grade finishing

A wide range of specialized spray guns

Application efficiency is exponentially improved

Multiple self-cleaning features eliminatematerial buildup

No gun clogging

Modular design

Fewer wearing parts
Easy disassembly and maintenanc

Special alloy material

Excellent wear and corrosion resistance and airtightness

Ergonomic design

Excellent comfort and reduced fatigue

Opt for specialized spray guns to achieve professional-grade finishing

JHBW-HAP

JHBW-HAP-S

JHBW-HMP

JHBW-XAP-S

JHBW-TP

JHBW-XAP

JHBW-XMP

JHBW-EP-A

Professional Certificates

We firmly adheres to the concept of compliance, ensuring every product is reliable and safe to use.

Frequently Asked Questions

What are the main components of a spray foam machine?

Proportioner: The main unit that houses the pumps, heaters, and controls. It precisely meters and heats the two liquid components (Iso and Resin).

What is the difference between a Plural-Component and a Single-Component machine?

This is the standard for professional SPF application. It has two separate material tanks, pumps, and hoses for the "A-side" (isocyanate) and "B-side" (resin/polyol blend). The machine meters, heats, and delivers them separately to the gun, where they are mixed.

What types of spray foam can I apply with these machines?

Softer, less dense, and vapor-permeable. Used primarily for interior wall insulation and sound dampening.

Why is material temperature so critical?

Temperature directly affects viscosity and reaction time. Properly heated material has a lower viscosity, which allows for better mixing at the gun tip, a more consistent spray pattern, and optimal foam rise and cure. Incorrect temperatures are a primary cause of application failures.

Grow Your business Today<br/>Equipped with reliable polyurethane and polyurea equipment, <br/>it features long-lasting durability and is trustworthy.

Grow Your business Today
Equipped with reliable polyurethane and polyurea equipment,
it features long-lasting durability and is trustworthy.

Quote Now

Products: Polyurethane Spray Equipment; Polyurea spray machine; Polyurethane foaming machine; Buffer packaging machine; spray gun; Accessories

Contact Us: A01, Gpl jinan Laser Industrial Park, jinanCity, Shandong Province, china.; info@jhbw.com; Mr Zhang: +86 188 8829 0004

Newsletter: Don't miss our news subscription, please fill in the form below.

Follow Us

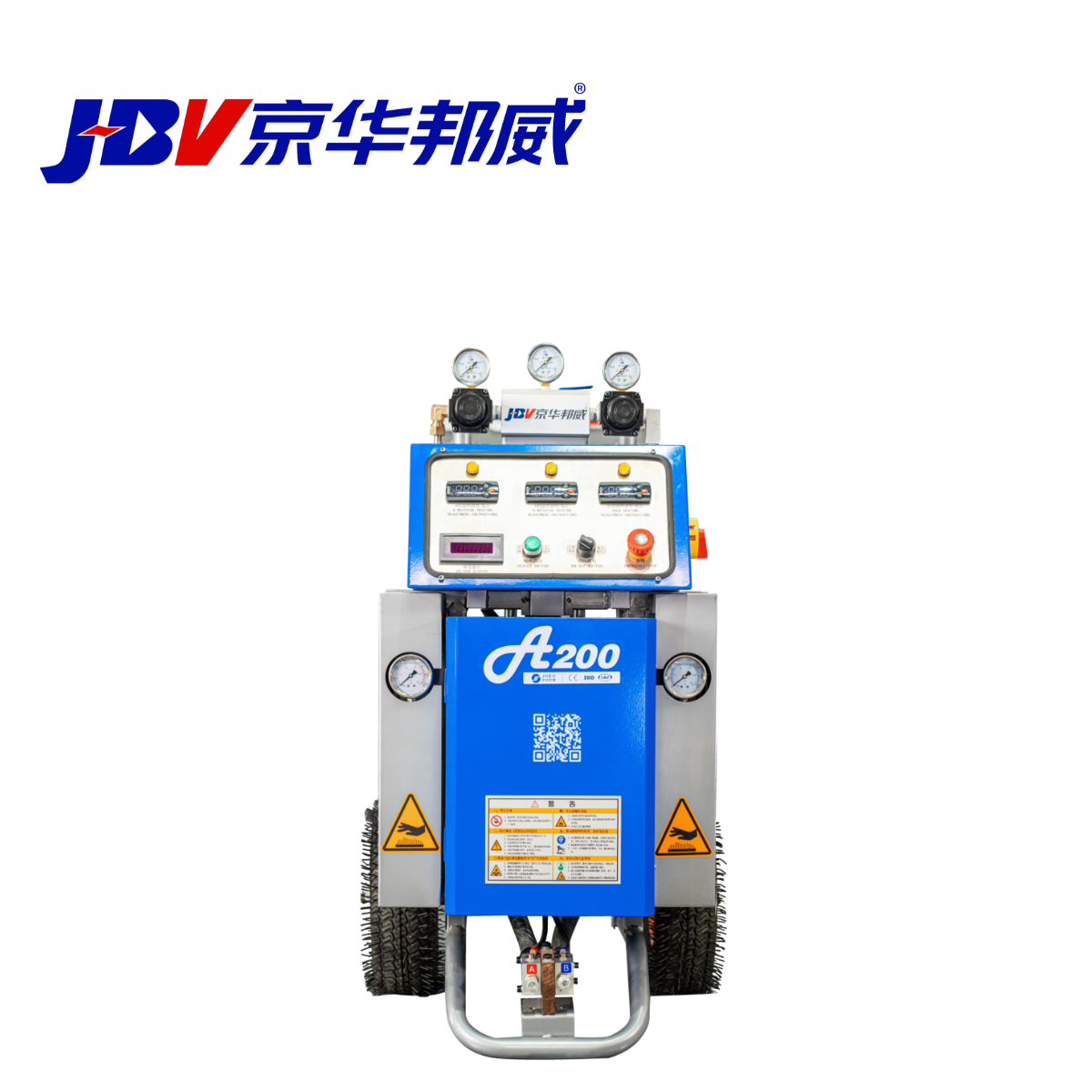

JHBW-A200
